FX-8 Series Medical Foot Switches (IPX8)

Features: •Robust glass fiber reinforced plastics •Compact design •Easy to clean and sterilize •Various internal switch types •Pressure point for better tactile feeling •Ergonomic pedal profile for smooth actuation •Large front label space for custom design

Installation dimensions:

Specifications: Operating Frequency 60 ops/min Insulation Resistance >100mΩ@500V DC Contact Resistance <25mΩ(initial) Rated Current/Voltage 5A 125/250VAC; 5A/30VDC Inrush Current Complies with IEC947-5-1 Dielectric Strength 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts Service Life 1,000,000 (operations) Operating Temperature -30~+80oC (-22~176oF) Degree of Protection IPX8

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.



TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

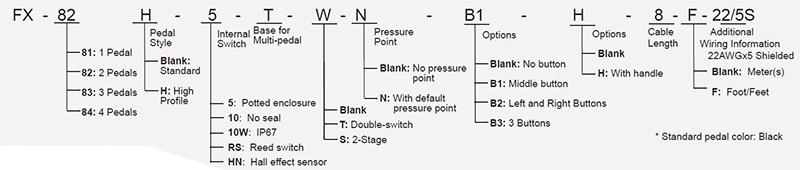

TYPE:FX-81-5-N View Details	TYPE:FX-81-5-W-N-B1-H View Details	TYPE:FX-81-5-W-N-B3-H-L View Details
TYPE:FX-81H-5W W View Details	TYPE:FX-82-5W(S) View Details	TYPE:FX-82-W View Details
TYPE:FX-83-WP View Details	TYPE:FX-83-W View Details	TYPE:FX-84-5W-H View Details
